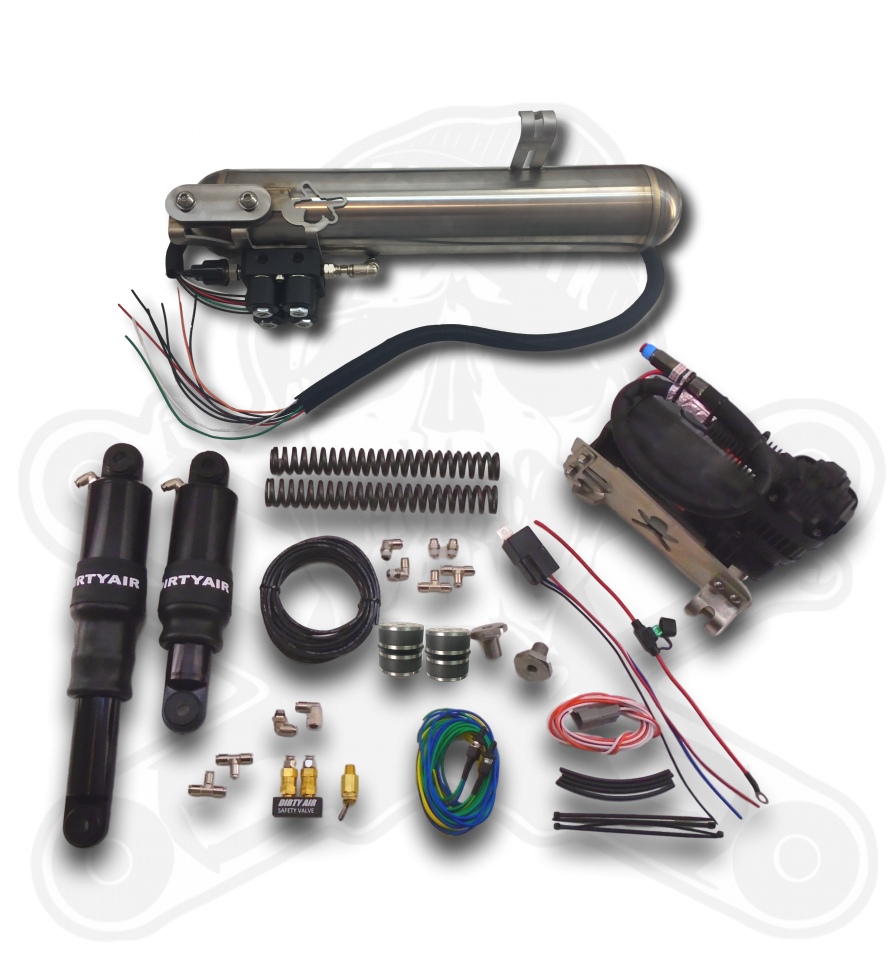

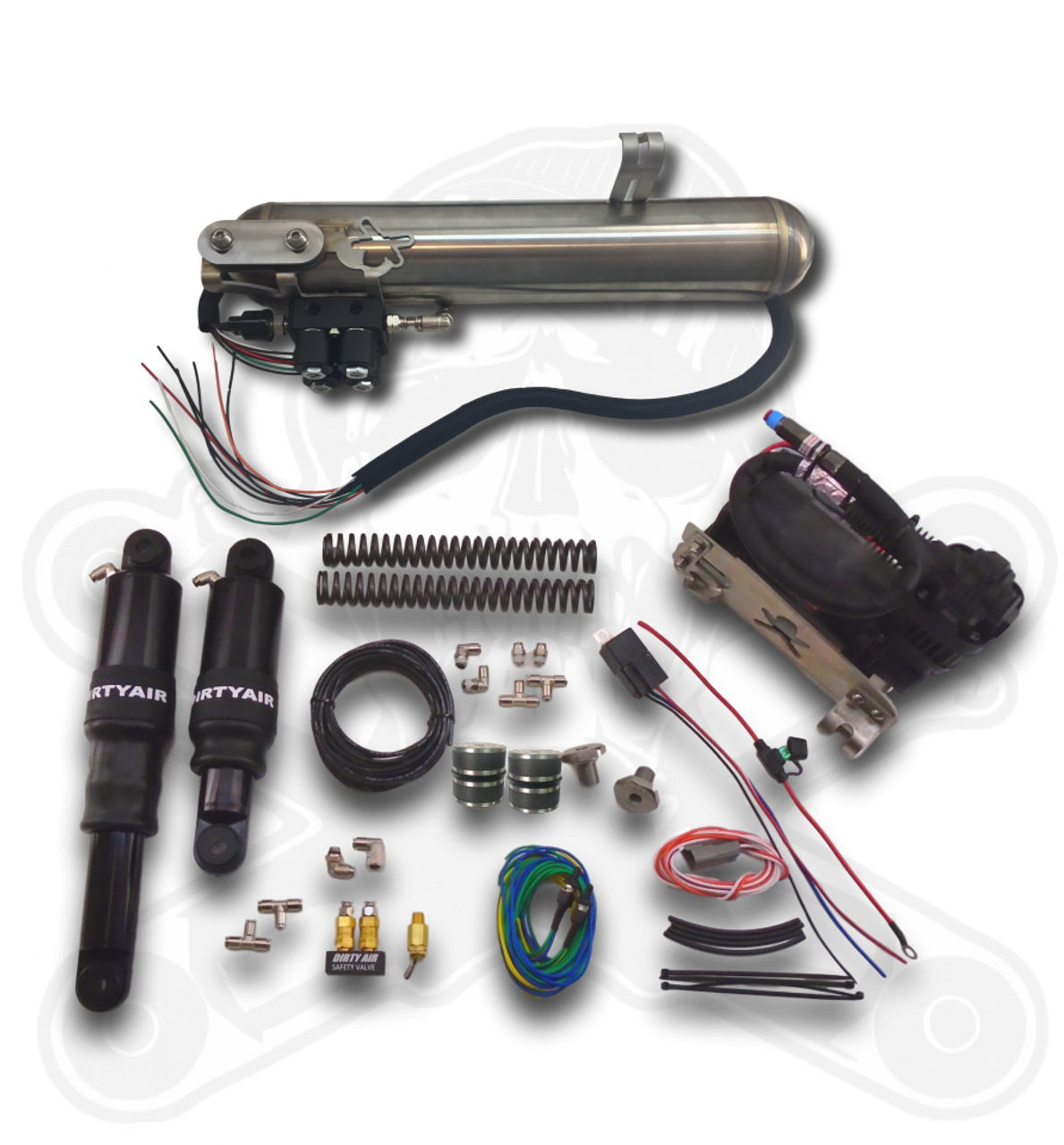

Options to fit Harley TRIKE touring models (Tri-glide, Freewheeler, RG3) 2024-down. This system has options to include everything you need: Stainless steel tank with 4-valve manifold attached, default design built with brackets to mount to any flat surface. System includes DIRTY AIR rear shocks, with polyurethane bushings and push lock fittings installed for 5/32" tubing. Option to upgrade to aluminum shocks, designed and built from the ground up to be the most reliable, most comfortable ride and best performing air shock available. Includes large compressor that can mount to any flat surface. System runs 5/32" tubing to the front and rear suspension. Please note that if you're running stock triple trees, or trees that re-use the factory fork cap bolt, you will need to add new fork caps to allow you to plumb air to your forks unless you want to drill and tap the factory fork caps - If you have aftermarket trees for a big wheel, select the trees / front wheel size you have so we can ensure you get the correct fittings etc. to work with your front end. Stock sized front wheels do not require bump stops, oversized front wheels usually require front fork bump stops depending on the neck/tree setup, wheel size, fender spacing, fairing, etc. System includes installation instructions that cover wiring and plumbing, but please note that trike system installations are custom installations. Tank and compressor have brackets to mount to a flat surface, and can be custom mounted somewhere inside the trunk, which will likely require some minor custom fabrication. Frame mounted installation could be accomplished with some fabrication and custom fitment. We do suggest professional installation but it is not necessary.
Steel shocks measure 9.5" collapsed, 13.25" extended (measured bolt-center to bolt-center)
Aluminum shocks measure 9.5" collapsed, 13.75" extended (measured bolt-center to bolt-center)
Road Glide 3 models may require aluminum shocks with custom limited travel to allow clearance. Please measure minimum shock height before ordering to confirm
What's the difference between the steel and aluminum shocks? Steel shocks have a pretty basic design inside and out. This keeps the price low, and the shocks still ride well and are very reliable. The aluminum shocks have a more advanced design inside and out - This allows for optimum reliability, as well as the most comfortable ride available and the best performance available. They have a wider range of comfortable travel, so they're very easy to adjust and most people find that they can ride lower with these shocks. If you are looking for the best air shocks available for your bike, these aluminum shocks are what you are looking for. They ride great with the additional weight of trike models.
*For straight axle models only. Models with independent rear suspension require a custom system*
Optional handlebar grip switch will not fit Road Glide 3 models due to anti-rotation pin/hole in stock handlebars. Aftermarket bars work as long as they are not 2015-up Road Glide specific.
Please note there is no safety valve required or included for trike models. If for some reason this system is being installed on a 2-wheel model, a safety valve kit must be installed.
Please note that many system parts will vary with year and other options selected, some parts may not be included or not exactly as pictured.
1 year warranty on all parts.
